Multifunctional Cryo Lipolaser Vacuum Slimming Equipment
Theory
Cryolipolysis (Fat Freezing)
Through cooling technology, triglyceride in fats will be converted into solid in particular low temperature. Fat cells premature aging and death. Through the normal metabolic processes to decrease the fat layer and achieve the purpose of partially melting fat.
Lipolaser
Lipolaser is a latest technology for weight loss.
Laser is irradiated to parts of the body, producing photochemical reactions, then through body’s metabolism and energy consumption to reduce the excessive fat.
RF Cavitation
Stubborn cellulite can be effectively treated by Cavitation.
Cavitation ultilizing intense sound wave (reaches 40KHz) causes violent vibration within fatty cell. Cellulite is bombarded with strong force, causing fatty acid decomposition and enhancing blood circulation. Finally fat acid is discharged outside the body through lymphatic drainage, thus achieving the weight lost and the lush body beautification effects.
Velashape
Vacuum system is through the deep negative pressure suction and radio frequency, stimulate the skin tissue, accelerate the blood circulation and activate the subcutaneous fat, improve lymph circulation, accelerate the burning fat into fatty acids, so as to eliminate body toxins and excess water along with the body, make the skin more tight and elastic, partial body tight, improve stretch marks and cellulite, especially for liposuction surgery and postpartum flabby skin and uneven phenomenon has very good tight repair effect.
Application
Inches loss.
Skin tightening ,improve skin elasticity.
Cellulite reduction, weight loss.
Shape body contour.
Preparation before Operation
Before using this machine, check the fat thickness with the fat ruler to ensure whether the customer can use the machine. People with thin fat layers must not use fat freezing machines, otherwise it will endanger human health;
Antifreeze membrane must be used when using this machine, otherwise frostbite may occur;
The vacuum power should be adjusted according to the customer's tolerance, starting from the lowest value;
For initial use, the freezing temperature range should be set between 0 ° C and -5 ° C;
The power line has been installed correctly;
The hand piece is well connected with the equipment;
Keep the power switch situation “ON”

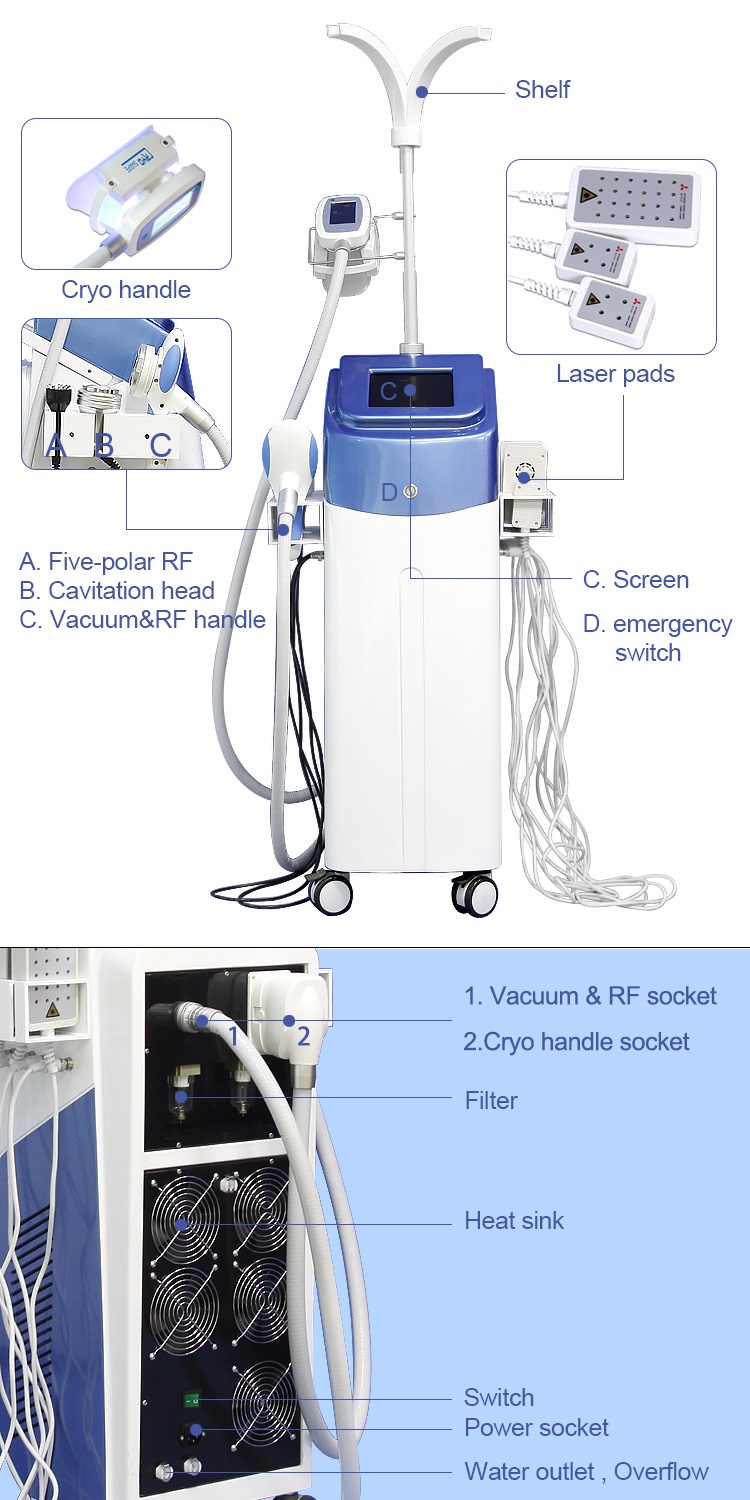

Parts Introduction
Parameters
Voltage | 220v/110v; 50Hz-60Hz |
Mitsubishi classification | Electrical Class II, Type B applied part |
Pads | 6pcs,4 big pads and 2 small pads |
Laser type | low intensity diode laser |
Laser source | Mitsubishi diode laser ML101J27 |
Mitsubishi Wave length | dual wavelength, 650nm and 980nm |
Laser energy | 130mW~350mW (pulse) |
Quantities of lamps | 104 pcs |
Mitsubishi Ingress Rating | IPXO |
Lipolaser cooling requirements | Air cooled |
Cooling device output temperature | 5℃~ -16℃ |
Cooling device output pressure | 0-100Kpa |
Cooling liquid | pure water, with 9L |
Default working time | 0-60 minutes |
Power consumption | ≤400W |
Cavitation | 35-40KHz |
RF frequency | 5MHz |
Vacuum output pressure | 0-100Kpa |
Net Weight/Gross Weight | 50 kg/62kg |
Operation
